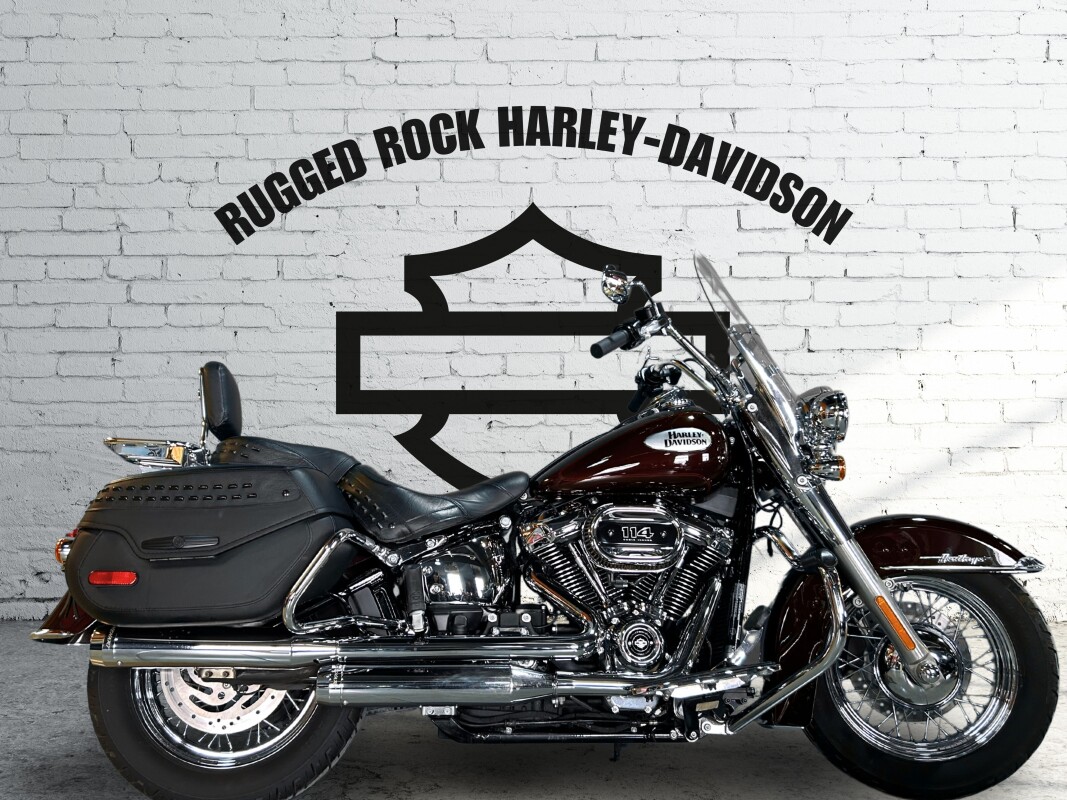

2022 Harley-Davidson<sup>®</sup> Heritage Classic 114 Midnight Crimson

The refined gloss-black finishes, modern edge and reinvigorated ride of the Heritage model take nostalgia ripping into a new place. It starts with the performance of the Milwaukee-Eight® 107 or 114 engine and the re-invented Softail® frame and suspension. The ride will put a big smile on your face. On top of that, you get a look that drips with gangster-era style. And practical features like a windshield and hard saddlebags for light touring. Tradition is good, but it doesn’t mean sitting still. Available in 107 (1745cc) and 114 (1868cc) engine displacements.

Specifications

Dimensions

add remove
- Length:

  2415 mm
- Seat height, unladen:

  680 mm
- Ground clearance:

  120 mm
- Rake (steering head):

  30
- Trail:

  140 mm
- Wheelbase:

  1630 mm
- Tires, front specifications:

  130/90B16,73H,BW
- Tires, rear specifications:

  150/80B16,77H,BW
- Fuel capacity:

  18.9 l
- Oil capacity:

  3.8 l
- Weight, as shipped:

  316 kg
- Weight, in running order:

  330.21 kg
- Luggage capacity – volume:

  1.5 cu ft (0.043 m3)
Engine

add remove
- Engine:

  Milwaukee-Eight® 114
- Bore:

  102 mm
- Stroke:

  114 mm
- Displacement:

  1868 cm³
- Compression ratio:

  10.5:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-2 shorty dual; catalyst in muffler
Performance

add remove
- Engine torque testing method:

  EC 134/2014
- Engine torque:

  161 Nm
- Engine torque (RPM):

  3000
- Lean angle, right (deg.):

  27.3
- Lean angle, left (deg.):

  28.5
- Fuel economy testing method:

  EU 134/2014
- Fuel economy:

  13,276.61 L/100 km
- CO₂ emissions testing method:

  EU 134/2014
- CO₂ emissions :

  128 g/km CO2
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Wheels, front type:

  Gloss black, 9-spoke cast aluminum
- Wheels, rear type:

  Gloss black, 9-spoke cast aluminum
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
Electric

add remove
- Lights (as per country regulation), indicator:

  High beam, turn signals, neutral, low oil pressure, engine diagnostics, auxilary lighting, cruise, ABS, security, low battery voltage, low fuel
- Gauges:

  5-inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer indication
