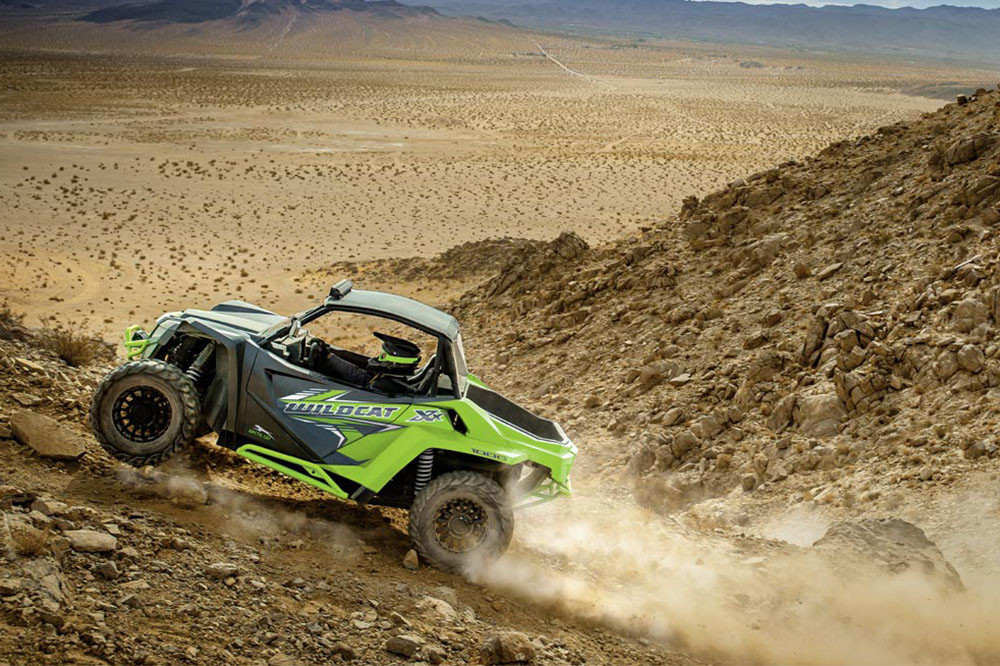

Wildcat XX

Wildcat XX


Off-Road Racing Inspired Suspension System

Unequal Length A-Arm Front Suspension

A better ride starts up front. Our unequal length A-arms neutralize camber, grabbing more of the ground to stabilize you through every white-knuckle corner.

Rear Trailing Arm Suspension

Hardcore trophy truck and Class 1 buggy racers will recognize the vehicle’s rear trailing arm. It links to the front instead of the sides to keep your wheels moving up-and-down, not side-to-side.

80% Less Track-Width Change

Many vehicles are plagued with side-to-side motion that pushes you off course, requiring constant steering corrections and robbing you of stability. Wildcat XX creates 80% less track-width change than the competition for the smoothest ride in the industry.

Premium FOX 2.5 PODIUM QS3 Shocks with Bottom-Out Control

QS3 Dial

When you want to dial in a more precise ride for the obstacle in your way, FOX QS3 technology lets you do it more quickly and more simply than other suspension systems.

Bottom-Out Control

When you hit a little turbulence, a secondary piston engages in the final 30 percent of shock travel, packing an additional 3,000 pounds of damping force.

998cc 3-Cylinder Naturally Aspirated EFI Engine

A best-in-class naturally aspirated engine with 130HP sacrifices nothing and is built to take any challenge head on.

Durable Components

  • If you’re thinking of taking it easy on Wildcat XX — don’t. We doubled down on durable, tested parts, including:
  • Double Shear Steering and Suspension Components
  • Forged Aluminum Front Knuckle
  • Oversized Front and Rear Wheel Bearings
  • Hanging Rear Drivetrain
  • Removable Rear Bottom Skid

2/4-Wheel Drive with 4WD Lock

Greater flexibility on all kinds of terrain, along with superior rock crawling ability.

18 inches of Front and Rear Travel

Wildcat XX doesn’t flinch at a bump in the road. It has more than enough travel to tame any terrain.

Largest-In-Class Cab

The most spacious driver experience in the industry makes for the most comfortable ride.

14-inch Ground Clearance

Wildcat XX stays high above terrain, so you can leave obstacles in the dust.

Dual CVT Air-Intake

No need to give this ride a breather — steady airflow keeps Wildcat XX cooler in hot conditions.

Race-Inspired ROPs

The toughest challenges demand the toughest safety features, like our durable roll-over protection system.

Standard Full Doors

Full-length hard doors give riders added protection from the elements.

Oversized Fenders

Coverage over each wheel keeps dust and other debris from reaching the cab.

Accessory Ready

Get more juice for your add-on parts with a standard 65-amp alternator and pre-installed wiring.

Premium Tires and Wheels

30-inch Behemoth tires with 15-inch custom KMC wheels help you keep a grip on all kinds of terrain.

Class-Leading 300-lb Bed

Then you need to take extra gear, Wildcat XX hits the spot with a bed large enough to fit a full-sized spare tire.

Easy to Service

Wildcat XX is easier to service than any other performance side-by-side. Toolless bed removal gives you access to the powertrain, and a removable rear bottom skid plate lets you service the transaxle and engine with ease. You can also enter the front gear case by pulling off the front steel skid. All so you can make quick adjustments, then get back in the driver’s seat.

Over 30 Custom-Built Accessories

We made Wildcat XX to take on the most extreme terrain — and you get to make it yours. Customize the ultimate performance side-by-side with 30 premium accessories, including:

  • Bumpers and Guards
  • Cab Accessories
  • Rear Windshields
  • Audio and Speaker Systems
  • Cargo and Racks
  • Lights
  • Roofs
  • Storage
  • Windshields

6-Month Warranty

We’ve got your back with a robust 6-month warranty.


Engine Type Liquid-Cooled, 4-Stroke Inline Triple Cylinder Dual Overhead Cam, Gas Engine
Horsepower 130HP
Displacement 998cc
Drive Train CVT
Drive System Selectable 2WD/4WD
Fuel System Electronic Fuel Injection (EFI)
Gear Selection TEAM Rapid Response Clutches (H,L,N,R,P)
Front Differential Selectable Electronic Locking
Rear Differential Spool
Steering Electronic Power Steering with Tilt Steering Wheel with Sport Design
Front Suspension Double A-Arm with 18 in. (45.7 cm) Travel
Rear Suspension Trailing Arm with 18 in. (45.7 cm) Travel
Shock Absorbers FOX 2.5 PODIUM QS3 with Compression Adjustment (Front) FOX 2.5 PODIUM QS3 with Compression Adjustment and Bottom-Out Control (Rear)
Brake System FOX 2.5 PODIUM QS3 with Compression Adjustment (Front) FOX 2.5 PODIUM QS3 with Compression Adjustment and Bottom-Out Control (Rear)
Parking Brake Dual Piston Front Calipers and Single Piston Rear Calipers
Front Tires Park in Transmission
Rear Tires 30 x 10 x 15 in. CST Behemoth Tires (Front and Rear)
Wheels 15 in. Aluminum KMC Wheels
Bed Load Capacity 300 lbs (136.1 kg)
Total Capacity 730 lbs (331.1 kg)
Overall Length 136 in. (345.4 cm)
Overall Width 64 in. (162.6 cm)
Overall Height 67.5 in. (171.5 cm) w/o roof | 68 in. (172.7 cm) w/ roof
Overall Weight 1,816 lbs (823.7 kg) (Dry)
Wheelbase 95 in. (241.3 cm)
Ground Clearance 14 in. (35.6 cm)
Fuel Capacity 10 gal (37.9 L)
Bed Dimensions (L x W x H) 34 x 32 x 9 in. (86.4 x 81.3 x 22.9 cm)
Standard Colors Charcoal Metallic/Medium Green, White/Fire Red
Instrumentation Dual Screen LCD Gauge with Seatbelt Indicator, High Beam Indicator, Oil Pressure Indicator, Coolant Temp. Warning Light, Check Engine Light, Engine Hour Meter, Odometer & Trip Meter, Clock, Gear Position, Diagnostics
Seating Stitched, Two-Tone, Contoured Bucket Seats
Storage Components Cargo Bed, Glove Box, Cup Holders (2)
Additional Features 3-Point Seat Belts (4-Point and Click-6 Ready), Seat Belt Rev Limiter, Standard Full Doors, Race-Inspired ROPS with Front and Rear Intrusion Bars, 2 Passenger Grab Handles, Headlights, Brake Lights
Standard Accessories N/A
Charcoal Metallic Medium Green
White Fire Red
