2025 Harley-Davidson<sup>®</sup> Street Bob™ Centerline w/Laced Wheels

OWN FOR AS LOW AS $194.30 BI-WEEKLY OAC*

The Street Bob is a lean, mean bobber with mini-ape handlebars, mid-mounted foot controls, and a massive Milwaukee-Eight® 117 Classic V-twin, which makes the slim-but-tough Softail® quicker than ever.

*Payment shown is based on bi-weekly financing, On Approved Credit (O.A.C.). Taxes, licensing, and fees not included. Terms, rates, and payments will vary based on credit history and current offers. See dealer for complete details.

Specifications

Dimensions

add remove
- Length:

  2320 mm
- Seat height, unladen:

  680 mm
- Ground clearance:

  125 mm
- Rake (steering head):

  30
- Trail:

  157 mm
- Wheelbase:

  1630 mm
- Tires, front specifications:

  100/90B19,57H,BW
- Tires, rear specifications:

  150/80B16,77H,BW
- Fuel capacity:

  13.2 l
- Oil capacity:

  2.5 l
- Weight, as shipped:

  282 kg
- Weight, in running order:

  293.02 kg
- Tire, type:

  Dunlop® Harley-Davidson Series, bias blackwall front and rear
Engine

add remove

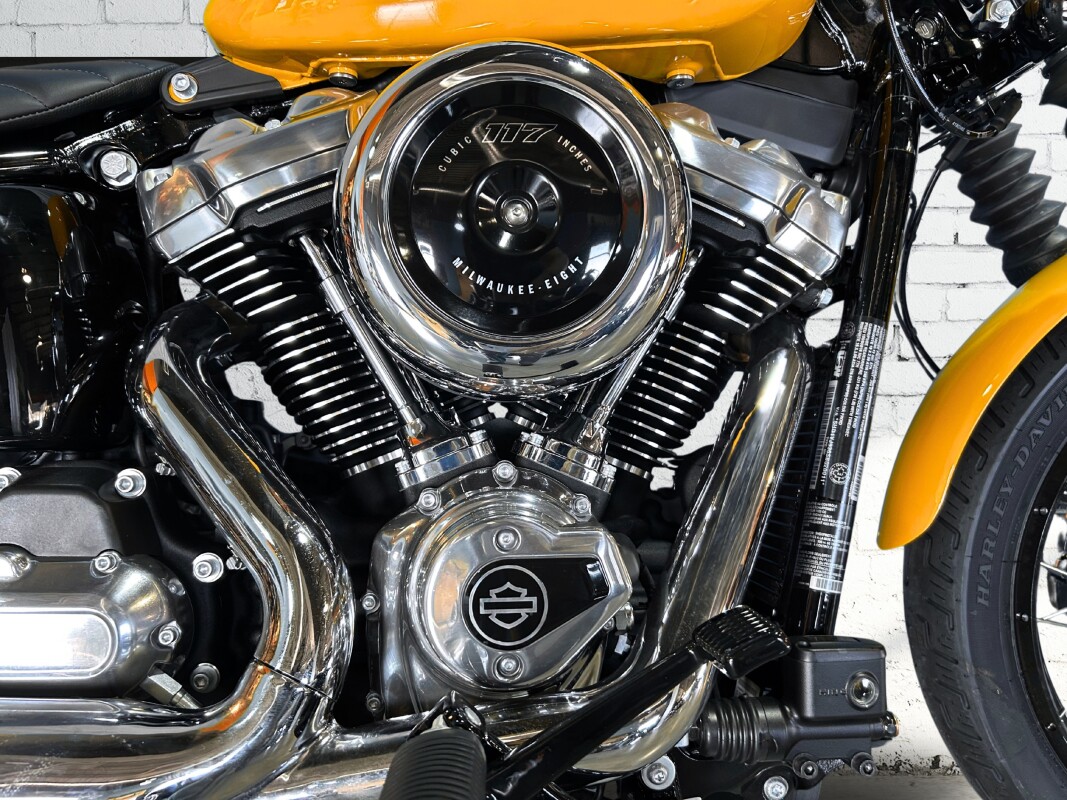

- Engine:

  Milwaukee-Eight® 117 Classic
- Bore:

  103.5 mm
- Stroke:

  114.3 mm
- Displacement:

  1923 cm³
- Compression ratio:

  10.3:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-1; catalyst in header
Performance

add remove
- Engine torque testing method:

  EC 134/2014
- Engine torque:

  163 Nm
- Engine torque (RPM):

  2500
- Horsepower:

  98 HP / 73 kW @ 4600 rpm
- Lean angle, right (deg.):

  28.5
- Lean angle, left (deg.):

  28.5
- Fuel economy testing method:

  EU 134/2014
- Fuel economy:

  47 mpg (5 l/100 km)
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Front fork:

  Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; gaiter covers
- Rear shocks:

  Hidden, free piston, coil-over monoshock; 43mm stroke; cam-style preload adjustment
- Wheels, front type:

  Black, Annihilator cast aluminum
- Wheels, rear type:

  Black, Annihilator cast aluminum
- Brakes, type:

  Solid, uniform expansion rotors
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
